Label Paper Extrusion Coating Lamination Line 1700mm Release Liner

    Buy cheap Label Paper Extrusion Coating Lamination Line 1700mm Release Liner from wholesalers

    Buy cheap Label Paper Extrusion Coating Lamination Line 1700mm Release Liner from wholesalers
    • Buy cheap Label Paper Extrusion Coating Lamination Line 1700mm Release Liner from wholesalers

    Label Paper Extrusion Coating Lamination Line 1700mm Release Liner

    Ask Lasest Price
    Brand Name : unitedwin
    Model Number : UW-1200/1450/1700
    Price : USD
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Label Paper Extrusion Coating Lamination Line 1700mm Release Liner

    Release Liner Label Paper Extrusion Coating Lamination Line


    Feature:


    1. Tension control: automatic tension control for rewinding and unwinding;

    2. Control method: man-machine interface operation, the extrusion thickness is automatically and accurately calculated by the computer, and the whole machine is controlled by linkage;

    3. Inverter: imported brand AC digital vector control inverter;

    4. Extruder: 2 sets (manufactured by the patented technology of "Chaos Mixing Low Energy Consumption Extruder").


    Technical Parameter:


    Mechanical speed200m/min or 300m/min
    Machine specifications
    1200mm,1450mm, 1700mm
    Product effective width
    Max.1100mm, 1350mm, 1600mm
    Extrusion volume
    UW-80* Maximum extrusion volume 200kg/h;
    UW-90* Maximum extrusion volume 300kg/h;
    UW-100* Maximum extrusion volume 400kg/h (when extruding LDPE)
    Extrusion motor power
    UW-80 drive motor 45kw;
    UW-90 drive motor 55kw;
    UW-100 drive motor 75kw
    Extrusion resin
    LDPE, PP, EVA, EAA, LLDPE, EMA, EMAA and other coating grade resins
    Extrusion thickness6~40μm
    Die thickness uniformity≤±5%
    Unwinding diameterMaximum Φ1200mm
    Unwinding base materialPaper (20~150gsm)
    Diameter of interlayer unwindingMaximum Φ1200mm
    Rewinding diameter
    Φ1200mm (center rewinding)

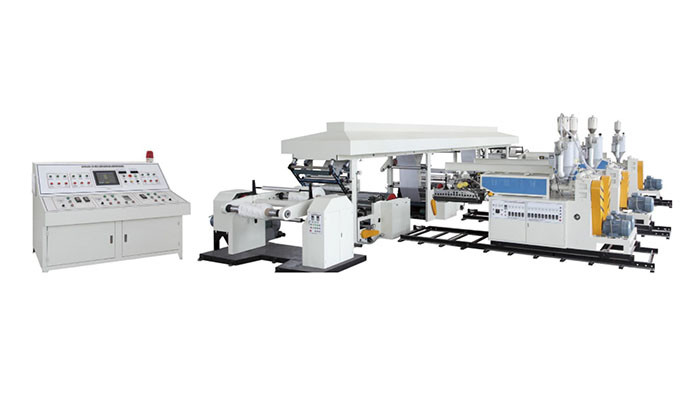

    Machine Photo:

    Label Paper Extrusion Coating Lamination Line 1700mm Release Liner

    FAQ:


    1.Are you trading company or manufacturer?
    We are manufacturer, and also provide the business solution to all the friends.


    2.Do you have quality certificate?
    Yes we have CE, SGS etc.


    3.What's the delivery time?
    Around 20~30days, however, based on order.


    4.Can you help us to buy other goods?
    Sure of that, it is our honor to work for you, and control the goods quality.


    5.What's payment terms ,trade terms you accept ?
    Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price. but we alsoaccept other way like L/C , wetern union ,and do CFR&CIF etc.


    6. Is your machine automatic or manual ?
    Automatic.


    7. What is the machine warranty?

    One Year.
