    Single Co Extrusion Coating Lamination Production Line 300m / Min Drive Motor

    Single Co-extrusion Extrusion Coating Lamination Production Line


    Feature:


    1. Tension control: winding, unwinding, laminated unwinding automatic tension control, maximum tension 400N.

    2. Control mode: human-machine interface operation, extrusion thickness by the computer automatically and accurately calculated, the whole machine linkage control.

    3. Inverter: imported brand AC digital vector control inverter.

    4. AC agent coating and oven: with light stick and scraper mesh coating roller and 4.5m oven.

    5. Compound cooling roll diameter: jacketed spiral cooling water forced heat exchange structure.

    6. Sandwich rewinding diameter: aluminum foil front and back high-speed automatic change of material.

    7. Extruder: 1 set, using the patented technology of "chaotic mixing and low energy consumption extruder" .

    8. The whole machine working plant requirements: 21m*13m*5m(L*W*H).


    Technical Parameter:


    Machine speedMax. 200 or 300m/min
    Machine specification
    1200mm, 1450mm, 1700mm
    Product effective width
    1200 models (600-1100mm)
    1450 models (800-1350mm)
    1700 models (1000-1600mm)
    Extrusion capacity
    UW-90 max. extrusion capacity 280kg/h;
    UW-100 max. extrusion capacity 350kg/h (when extruding LDPE)
    Power of extrusion motor
    UW-80 drive motor 37kw;
    UW-90 drive motor 45kw;
    UW-100 drive motor 55kw
    Extrusion resin
    LDPE, LLDPE, PP, EVA, EAA, EMAA, EMAA and other coating grade resins
    Extrusion thickness8~40μm
    Thickness uniformity of manual die head≤±5%
    Release diameterMax. Φ800mm or Φ1200mm
    Release base materialBOPP, BOPET, BOPA, thin paper (20 ~ 100g/m²)
    Sandwich rewinding diameterMaximum Φ600mm or Φ1000mm
    Base material for laminated rewindingBOPP, PET, MCPP, MPET, aluminium foil, paper
    Compound cooling roll diameterΦ700mm or Φ800mm
    Winding diameterMax. Φ800mm or Φ1200mm

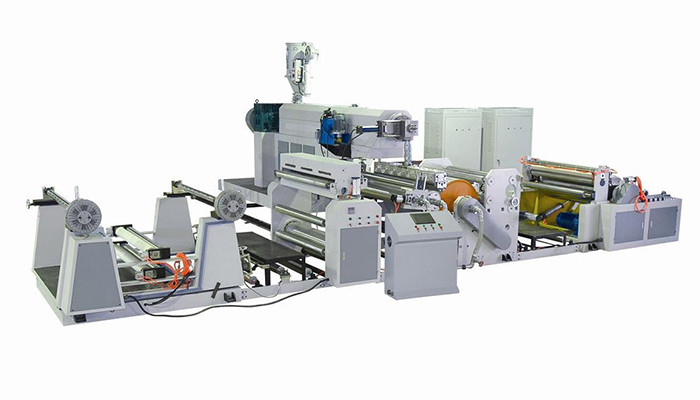

    Machine Photo:

    Single Co Extrusion Coating Lamination Production Line 300m / Min Drive Motor

    FAQ:


    1.Are you trading company or manufacturer?
    We are manufacturer, and also provide the business solution to all the friends.


    2.Do you have quality certificate?
    Yes we have CE, SGS etc.


    3.What's the delivery time?
    Around 20~30days, however, based on order.


    4.Can you help us to buy other goods?
    Sure of that, it is our honor to work for you, and control the goods quality.


    5.What's payment terms ,trade terms you accept ?
    Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price. but we alsoaccept other way like L/C , wetern union ,and do CFR&CIF etc.


    6. Is your machine automatic or manual ?
    Automatic.


    7. What is the machine warranty?

    One Year.
