    PP PE Woven Fabric Roll Cement Rice Bag Four Shuttle Circular Loom Machine

    Ask Lasest Price
    Brand Name : United Win
    Model Number : UW-4
    Price : USD
    Payment Terms : T/T, L/C
    Supply Ability : 3sets/month
    Delivery Time : 3 month
    • Product Details
    • Company Profile

    PP PE Woven Fabric Roll Cement Rice Bag Four Shuttle Circular Loom Machine

    PP/PE Woven Fabric Roll Cement Rice Bag Four Shuttle Circular Circle Loom Weaving Making Machine


    Descripition:


    This serious of four shuttle circular loom is latest plane cam struture,weaving the cylinder or flat cloth with PP and HDPE flat yarns.
    • Latest plane cam structure -adopt idler wheel from shuttle, non-lubrication.
    • The brown belt made of high-strength and high-toughness material, with brown silk, runs smoothly and has low noise.
    • Complete weft and weft automatic detection system.
    • Man-machine interface centralized control, easy to operate.


    Specifications:


    Working width,double flat60-750mm
    Number of shuttles per machine4
    weft density10-24pcs/10cm
    Speed0-120RPM
    Warp feedingMotor
    Inner diameter of Bobbin38mm
    Bobbin length230mm
    Max. bobbin diameter100mm
    Number of Warp yarns512pcs
    Normal rating of main motor2.2kw
    lift motor power22N
    winding motor power10kgs Torque motor
    Total power3Kw
    Installed size (mm)10500* 2400* 3200
    weight2T

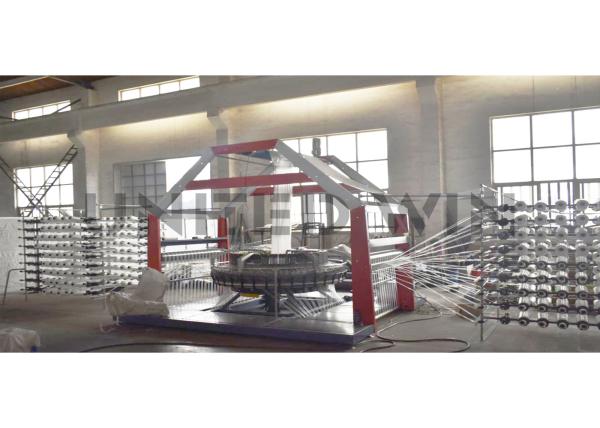

    Machine Photo:


    PP PE Woven Fabric Roll Cement Rice Bag Four Shuttle Circular Loom Machine


    FAQ:

    1. How long will your engineer reach our factory?

    Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)


    2. How many days will you finish installing?

    We will finish installation and training within 15 days.


    3. How long is your machine's warranty period?

    All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.


    4. How could you do if the parts broken within warranty?

    We would express the free replacement parts during the warranty date


    5. How could you do after one year warranty period?

    We also can-do service for you, but you need pay salary for our technicians 150USD/day for each person.


    6. How do we solve the machine problem after your engineer leaving?

    Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time.

    Our engineers will take a solution video according your description.
