    SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Woven Bags

    Ask Lasest Price
    Brand Name : United Win
    Price : USD
    Payment Terms : T/T, L/C
    Supply Ability : 3sets/month
    Delivery Time : 3 month
    Model Number : UW-850X6H
    Certification : ISO/ CE
    • Product Details
    • Company Profile

    SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Woven Bags

    SBY-850X6H Six Shuttle Circular Loom PP Woven Bags Making Machine


    Features:


    1. With the scroll transmission by little cam and swing-arm wheel, the machine runs easily and stably, non-lubrication.
    2. Adopt the latest energy saving synchronous motor and the intelligent micro-computer controling system can be installed if
    required.It can adjsut the weft density and compensate the weft density in case of weft-braking , which can improve the evenness
    of woven fabrics.
    3. With the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable.


    Specifications:


    ItemUW-650×4UW-850X6HUW-1350×6UW-2200×6UW-2250×8
    Number of shuttles(pcs)46668
    Folding width of cloth(mm)150-650300-850900-13501500-22001750-2250
    Number of warp576 pcs720pcs1200pcs2880pcs2880pcs
    Weft density8-16(pcs/inch)
    Max. speed(r/min)160150-1801108070
    Power of main motor2.KW3kw5.5 KW7.5kw11kw
    Max.weft Bobbin diameterФ 100Ф 115Ф 90
    Overall dimension(L×W×H)8500×2500×290010500×2800×292010850×3000×350016480×3600×458016480×3600×4580
    Weight (about)2000kg2500kg4200kg8000kg9000kg

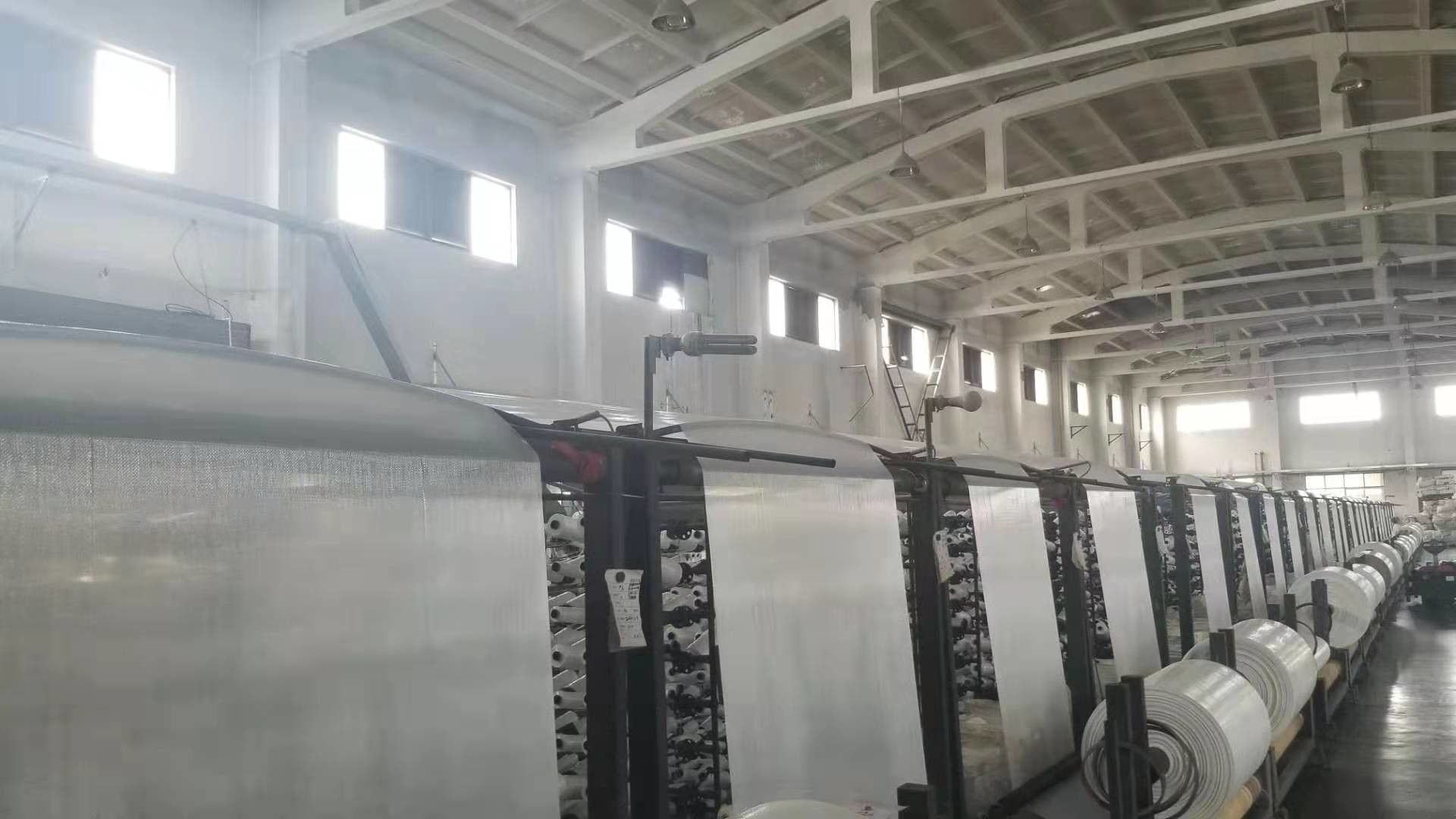

    Machine Photo:

    SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Woven Bags


    FAQ:

    1. How long will your engineer reach our factory?

    Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)


    2. How many days will you finish installing?

    We will finish installation and training within 15 days.


    3. What should we charge for your engineer?

    You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.


    4. How long is your machine's warranty period?

    All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.


    5. How could you do if the parts broken within warranty?

    We would express the free replacement parts during the warranty date


    6. How could you do after one year warranty period?

    We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.


    7. How do we solve the machine problem after your engineer leaving?

    Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time.

    Our engineers will take a solution video according your description.
