    Polythene Bag Roll To Roll Flexo Printing Machine For 6 Colors

    Ask Lasest Price
    Brand Name : unitedwin
    Model Number : SYJ-800E
    Price : USD
    Supply Ability : 3 sets/ month
    Delivery Time : 3 months
    • Product Details
    • Company Profile

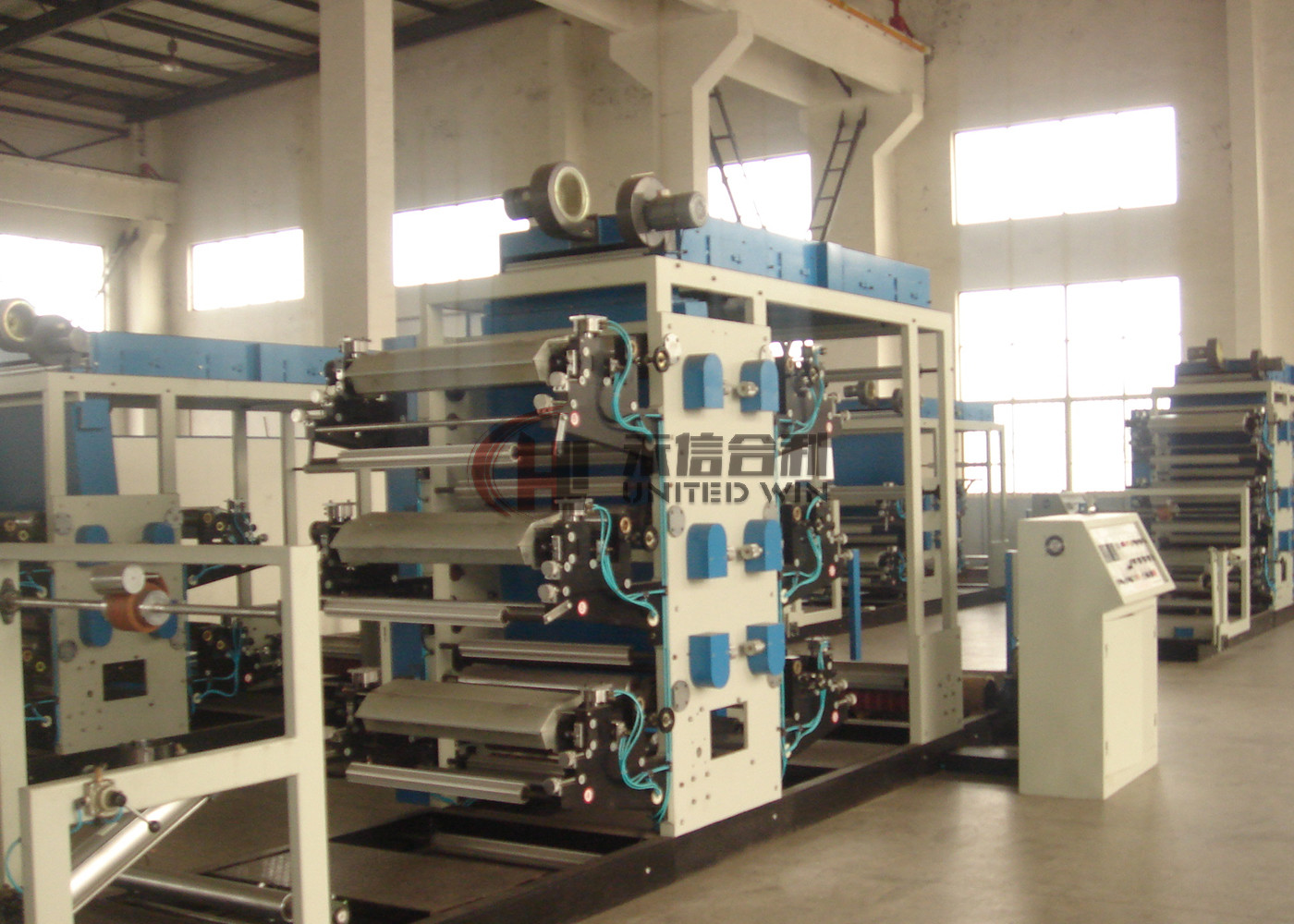

    Polythene Bag Roll To Roll Flexo Printing Machine For 6 Colors

    Polythene Bag Plastic Bag Flexo Printing Machine Roll to Roll for 6 colors

    CONTROL SYSTEM OF THE MACHINE


    The machine uses 1 No. Programmable digital AC drive suitable for 7.5-hp.ac. (main motor)

    The machine uses 1 No. Controls & monitor for pneumatic brake. (unwind motor)

    The machine uses 1 No. Programmable digital AC drive suitable for 5-hp.ac. (rewind motor)

    The machine uses Power on – off switch for A.C. Motors.

    The machine uses Power on - off switch for web guiding system.

    The machine uses 1 No. Main motor pot.

    The machine uses 1 No. Rewind motor pot with monitor.

    The machine uses 2 Nos. Inching switch. (jogging).

    The machine uses 1 No. Temperature controller. (digital).

    The machine uses 1 No. Electronic bag counter. (digital).

    The machine uses 1 No. Two-step heating zone switch.

    The machine uses Contactors and overload relays.

    The machine uses 1 No. Emergency stop.

    The machine uses 1 No. Auto stop for break inweb.


    ALL THE BEARING WILL BE OF FAG


    SPARES


    • RUBBER ROLLER---1.PCS

    • ANILOX ROLLER----1.PCS

    • OIL CAN --1.PCS

    • WINDER GEAR SET----1.NOS

    • HEATER --3.PCS

    • TOOL KIT --1.NOS


    ELECTRICAL CONNECTED LOAD HP*(ALL THE MOTORS OF ABB)


    1 No. Main Motor: 7.5-hp.ac.

    1 No. Rewind Motor: 5.0-hp.ac with gearbox by Bonifiglioli.

    1 No. Blowers: 3.0-hp.ac.

    1 No. Blower: 1.0-hp.ac.

    1 No. Web Guiding System: 0.5-hp.ac.

    Total Power Load is 17-hp(motors). + 30-hp(heaters).


    Specifications:

    ModelSYJ-800E
    Diameter of Roller≤φ1500mm
    Max feeding width800mm
    Max printing width650mm
    Machinery production capacity150m/min
    Normal printing speed80-120m/min
    Gas consumption1M3/min
    Fan power10KW
    Total power18KW
    Dimensions16000*3000*2500mm


    Application:

    This machines is special for printing woven bags. The color register can be adjusting positive rotation and clockwise 360,Without tum off the power. the speed is quick, the color printing is precise; simultaneously the big printing roller may carry on the crosswise adjustment, the adjustment quantity is 20mm by PLC instead of original circuit board control. It is steady in operation and speed changing, and can be easily operated. The character is evenly and clear. with few vulnerable part.

    Polythene Bag Roll To Roll Flexo Printing Machine For 6 ColorsPolythene Bag Roll To Roll Flexo Printing Machine For 6 Colors


    Polythene Bag Roll To Roll Flexo Printing Machine For 6 Colors

    FAQ:


    1.Could I have prices of your products?
    Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours

    2. Can we print our logo/website/company name on products?
    Yes, please advise the size and Pantone Code of the logo.

    3. What's the lead time for regular order?
    15-20 days for order quantity; depends on the season and quantity, usually less than 30 days.

    4. Can I get a discount?
    Yes, for the order quantity more than 2 pcs, please contact us to get the best price.

    5. Do you have training?

    Yes, we will send our technical manual & video
    6.How to deal with broken parts?
    we guarantee 1 year warranty free of charge.


    7. How could you do after one year warranty period?
    We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.
