High Efficiency Hot Melt Plastic Woven Bag Kraft Paper Extrusion Coating Lamination Line

    Buy cheap High Efficiency Hot Melt Plastic Woven Bag Kraft Paper Extrusion Coating Lamination Line from wholesalers

    Buy cheap High Efficiency Hot Melt Plastic Woven Bag Kraft Paper Extrusion Coating Lamination Line from wholesalers
    • Buy cheap High Efficiency Hot Melt Plastic Woven Bag Kraft Paper Extrusion Coating Lamination Line from wholesalers
    • Buy cheap High Efficiency Hot Melt Plastic Woven Bag Kraft Paper Extrusion Coating Lamination Line from wholesalers

    High Efficiency Hot Melt Plastic Woven Bag Kraft Paper Extrusion Coating Lamination Line

    Ask Lasest Price
    Brand Name : UW
    Model Number : UW-Z95-900
    Price : USD
    Supply Ability : 3 sets/ month
    Delivery Time : 3 months
    Certification : CE&ISO
    • Product Details
    • Company Profile

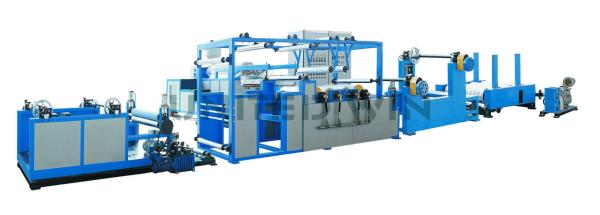

    High Efficiency Hot Melt Plastic Woven Bag Kraft Paper Extrusion Coating Lamination Line

    High Efficiency Plastic Extruding and Film Laminating Machine BOPP plastic extrusion lamination UW-Z95-900


    Description:

    UW series plastic extrusion laminating line using polypropylene (PP) and low density polyethylene (LDPE) as raw material, after hot melt extrudering film from the barrel, evenly coating at all kinds of substrates such as: woven bag, kraft paper, cloth surface laminating, under the action of laminating device, the substrate bonding strengthof plastic film and substrates ≥ 3N, it can be single or double-sided laminating at one time.

    This machine has the functions of fully automatic material receiving and refuelling, PLC control system, fully automatic weight control system, man-machine operation interface, and it is a high-quality supply in the same industry.


    Specifications:

    ItemUW-Z95-900UW-Z100-1600UW-Z120-2400UW-Z150-3600
    Die lip width10meter16.50meter25meter37meter
    Width of product200-850millimeter800-1500millimeter1000-2400millimeter2000-3500millimeter
    Max coating speed236m/minute236m/minute130m/minute100m/minute
    coat thickness0.008-0.03millimeter-0.05
    Screw diameter95millimeter100millimeter120millimeter150millimeter
    Ratio of L/D30:130:130:130:1
    Max. roll diameter of unwinding and winding1100mm1200millimeter
    Overall sizes (L*W*H)

    158×7.5×2.3m

    16.8×11×2.8m

    13.3×13×3.2m

    14.8×14×3.4m

    System installed capacity130kw150kw260kw300kw



    Application:

    High Efficiency Hot Melt Plastic Woven Bag Kraft Paper Extrusion Coating Lamination LineHigh Efficiency Hot Melt Plastic Woven Bag Kraft Paper Extrusion Coating Lamination Line


    Company information:

    High Efficiency Hot Melt Plastic Woven Bag Kraft Paper Extrusion Coating Lamination Line
    FAQ:

    1.Are you trading company or manufacturer?
    We are manufacturer, and also provide the business solution to all the friends.


    2.Do you have quality certificate?
    Yes we have CE, SGS etc.


    3.What's the delivery time?
    Around 20~30days, however, based on order.


    4.Can you help us to buy other goods?
    Sure of that, it is our honor to work for you, and control the goods quality.


    5.what's payment terms ,trade terms you accept ?
    Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price. but we alsoaccept other way like L/C , wetern union ,and do CFR&CIF etc.


    6.If the machine's spare parts broken ,where can i get ?
    We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
