SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Sack PP Woven Bag

    Buy cheap SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Sack PP Woven Bag from wholesalers

    Buy cheap SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Sack PP Woven Bag from wholesalers
    • Buy cheap SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Sack PP Woven Bag from wholesalers
    • Buy cheap SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Sack PP Woven Bag from wholesalers
    • Buy cheap SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Sack PP Woven Bag from wholesalers

    SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Sack PP Woven Bag

    Ask Lasest Price
    Brand Name : unitedwin
    Model Number : UW-850X6H
    Price : USD
    Supply Ability : 3 sets/ month
    Delivery Time : 3 months
    • Product Details
    • Company Profile

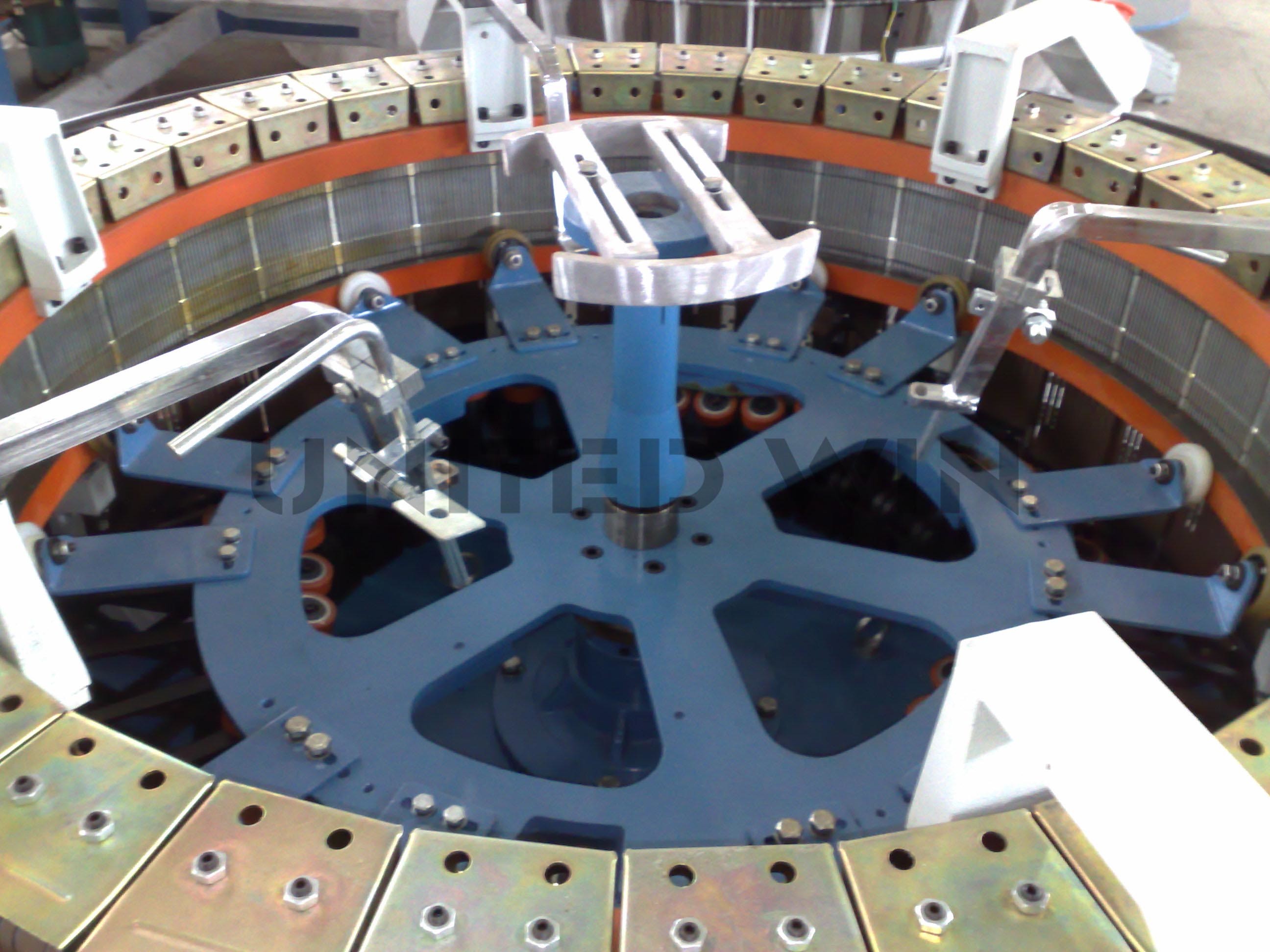

    SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Sack PP Woven Bag

    SBY-850X6H Six Shuttle Circular Loom Machine for Chemical Bag Cement Bag


    Descipition:


    SBY series plastic circular loom is specially design for the high quality wide tube or flat fabric by PP or HDPEAvailable: chemical bag, cement bag, rice bag, flour bag, shopping bag etc
    ● Plate cam with Grommet band & heddle wire structure,running stable, low noisc, low consumption and high efficiency.
    ● weft break & end detecting system
    ● Warp feed system
    ● HMI central control, easy operation

    Parameter:


    ItemSBY-650×4SBY-850X6HSBY-1350×6SBY-2200×6SBY-2250×10

    Number of shuttles

    4pcs6pcs6pcs6pcs10pcs
    Folding width of cloth150-650mm300-850mm900-1350mm1500-2200mm1750-2250mm
    Number of warp576pcs720pcs1200pcs2880pcs2880pcs
    Weft density8-16(pcs/inch)
    Max. speed180r/min180r/min110r/min80r/min70r/min
    Power of main motor2.2kw3kw5.5kw7.5kw11kw
    Max.weft bobbin diameterФ 100Ф 115Ф 90
    Overall dimension(L×W×H)8.5×2.5×2.9m10.5×2.8×2.92m10.85×3×3.5m16.48×3.6×4.58m16.48×3.6×4.58m
    Weight (about)2t2.5t4.2t8t9t

    Applications:


    SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Sack PP Woven Bag


    FAQ:


    1. Are you trading company or manufacturer?
    We are factory.

    2. How long is your delivery time?
    Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock. It is according to quantity.

    3.
    How long is your machine's warranty period?

    All our machine have one year guarantee, starting from finished installation.

    4. How could we do after one year warranty period?
    We also can do service for you, but you need pay salary for my technician 150USD/day.

    5. How could we do if the parts broken within warranty?
    We would express the free replacement parts during the warranty date.

    6. Can you help us find any engineer in our location?
    Of course, we will check and inform you as soon as possible.

    7. How do we solve the machine problem after your engineer leaving?
    Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according to your description.

    Quality SBY-850X6H Six Shuttle Circular Loom Machine for Plastic Sack PP Woven Bag for sale
