SPCL Series Twenty Shuttles Circular Loom Making Machine for Geotextile

    Buy cheap SPCL Series Twenty Shuttles Circular Loom Making Machine for Geotextile from wholesalers

    Buy cheap SPCL Series Twenty Shuttles Circular Loom Making Machine for Geotextile from wholesalers
    • Buy cheap SPCL Series Twenty Shuttles Circular Loom Making Machine for Geotextile from wholesalers
    • Buy cheap SPCL Series Twenty Shuttles Circular Loom Making Machine for Geotextile from wholesalers

    SPCL Series Twenty Shuttles Circular Loom Making Machine for Geotextile

    Ask Lasest Price
    Brand Name : United Win
    Model Number : SPCL-20/11000
    Price : USD
    Supply Ability : 3 sets/ month
    Delivery Time : 3 months
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    SPCL Series Twenty Shuttles Circular Loom Making Machine for Geotextile

    SPCL Series Twenty Shuttles Plastic Circular Loom Making Machine for Container Bag/Tarpaulin/ Geotextiles


    Description:


    SPCL series circular lloom, which adopts the Single Chip Microcomputer, carry out centralized control to the system; the parameter is set up and changed on Human Machine Interface. Main motor and take-up motor are respectively driven by dual inverters. The system can change and update the data in time, reaching high accuracy and move ahead simultaneously. The function of accurate weft cloth compensate, can carrying on by weft density adjustment in time, improving fabric's quality and the qualification rate. Mechanical malfunction can be displayed in sub-area and recorded in detail.


    Perfect electrical control, electrical control system adopts PLC centralized control, double frequency speed regulation, PID closed-loop control, lifting and weaving, advanced man-machine dialogue screen displays all menu data, so that the equipment operation is simple and reliable.


    Specifications:


    MouldShuttle Qty.Max.fold widthMax. Open widthWarp no.sSpeedMain power
    SPCL-24/1600024pcs8200mm164m8000pcs5~25RPM37kw
    SPCL-20/1100020pcs5500mm110m5376pcs5~28RPM22kw
    SPCL-16/830016(12)pcs4150mm83m4800pcs5~41RPM18.5kw
    SPCL-12/780012(14)pcs3900mm78m4400pcs5~41RPM18.5kw
    SPCL-12/720012(14)pcs3600mm72m3780pcs5~45RPM18.5kw
    SPCL-12/650012pcs3250mm65m3520pcs5~51RPM11/15kw
    SPCL-12/600012(10)pcs3050mm61m3200pcs5~51RPM11/15kw
    SPCL-12/540012(10)pcs2700mm54m2880pcs5~64RPM11/15kw
    SPCL-10/480010(8)pcs2400mm48m2880pcs5~64RPM11kw
    SPCL-10/440010(8)pcs2200mm44m2640pcs5~72RPM7.5/11kw
    SPCL-8/35008pcs1750mm35m1976pcs5~80RPM7.5kw
    SPCL-6/32006(8)pcs1400mm30m1820pcs5~80RPM7.5kw
    SPCL-6/27006pcs1350mm27m1510pcs5~100RPM7.5kw

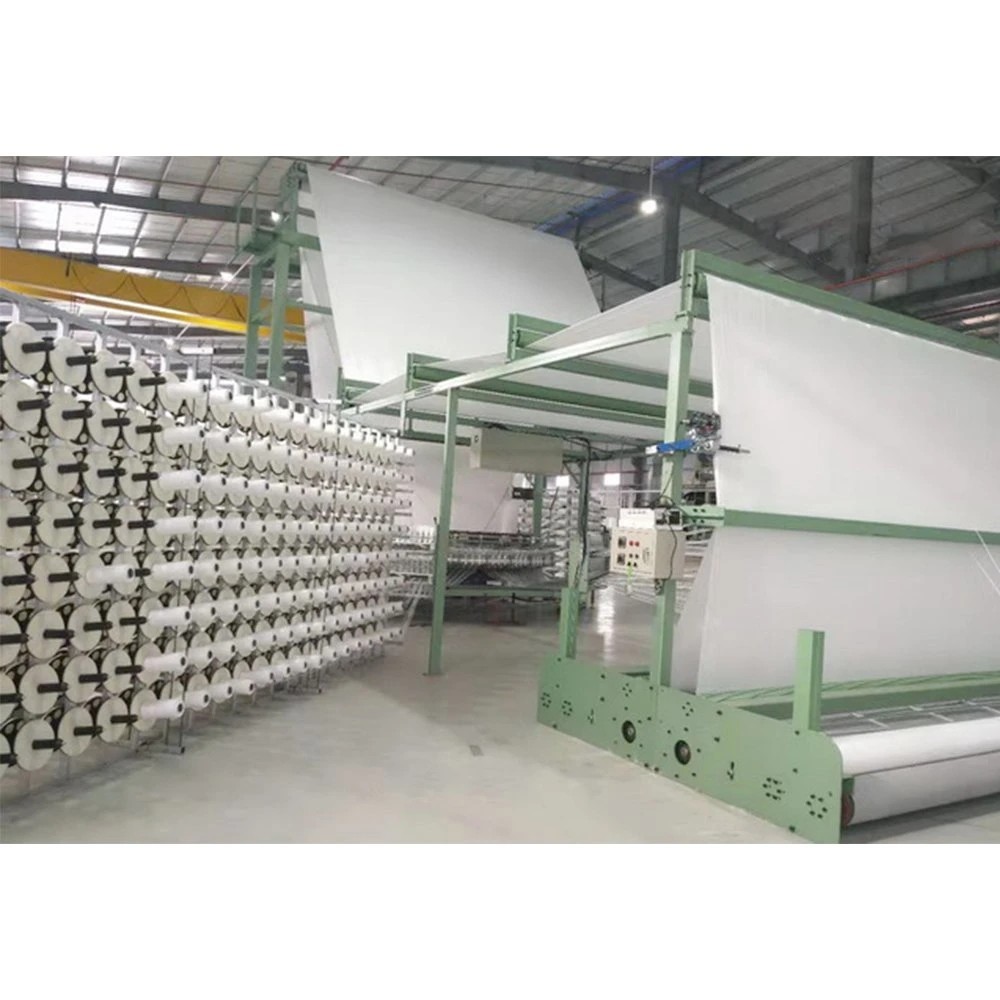

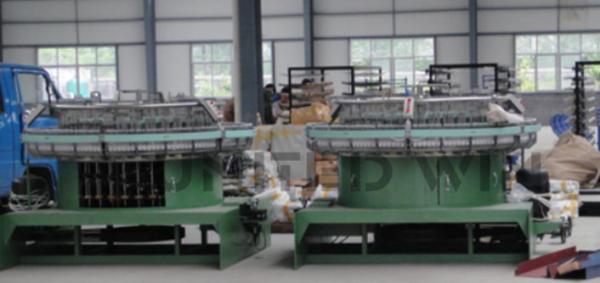

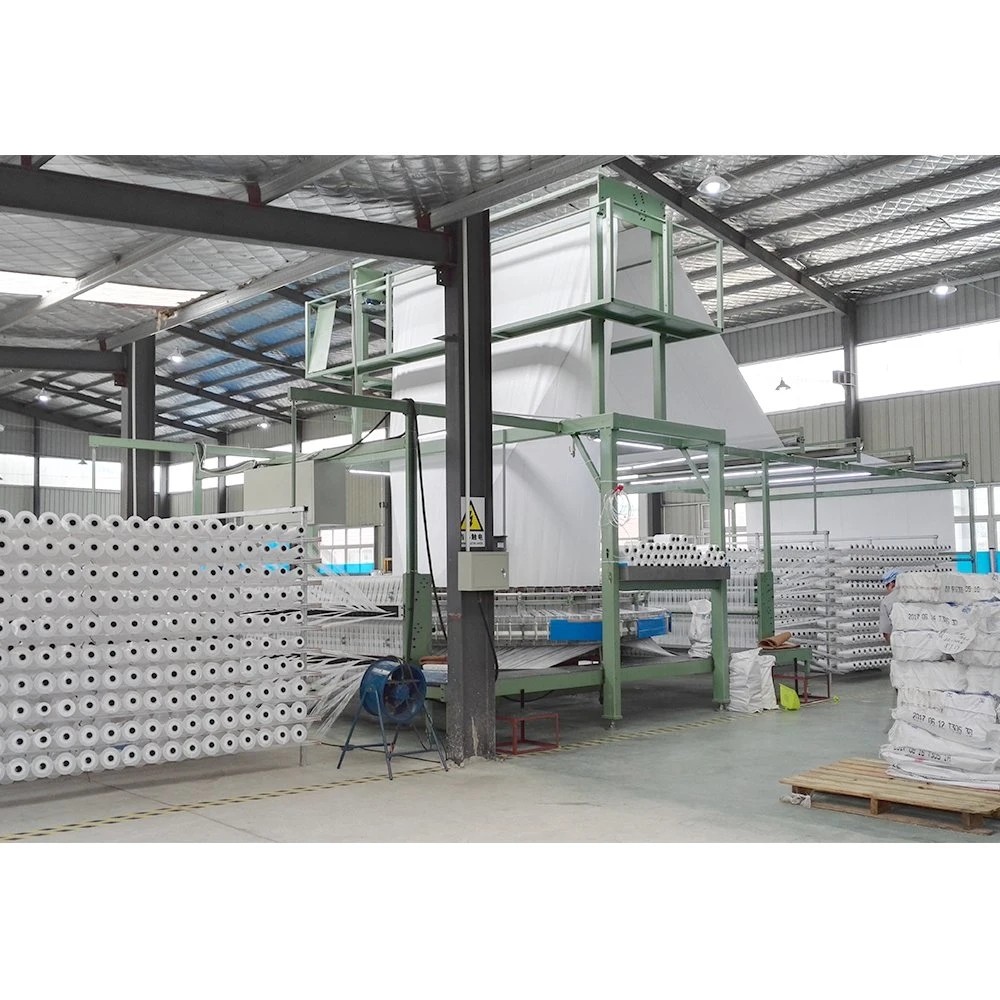

    Machine Details:

    SPCL Series Twenty Shuttles Circular Loom Making Machine for GeotextileSPCL Series Twenty Shuttles Circular Loom Making Machine for Geotextile

    FAQ:

    1. How long will your engineer reach our factory?

    Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)


    2. How many days will you finish installing?

    We will finish installation and training within 15 days.


    3. What should we charge for your engineer?

    You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.


    4. How long is your machine's warranty period?

    All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.


    5. How could you do if the parts broken within warranty?

    We would express the free replacement parts during the warranty date

    6. Can you help us find any engineer in our location?

    Of course, we will check and inform you as soon as possible.
