    Woven Bag Tape Extruder Machine PP Tape Flat Yarn Extrusion Line

    Ask Lasest Price
    Brand Name : United Win
    Model Number : UW-DS70×33-450
    Price : USD
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets/month
    Delivery Time : 3 months
    • Product Details
    • Company Profile

    Woven Bag Tape Extruder Machine PP Tape Flat Yarn Extrusion Line

    PP Tape Flat Yarn Extrusion Machine Line For PP Woven Bag Plastic PE, PP Tape Flat Yarn Extrusion


    Description:


    Plastic extruding flat film stretching line is designed and manufactured by introducing and absorbing foreign advanced techniques, and by improving domestic equipment inadequacies~ It is suitable for forming, and rolling various flat yam of thermoplastic plastics, such as the polypropylene, high density polyethylene and linear low density polyethylene, etc.


    The unit consists of the plastic extruder, filter, T-type die, cooling water tank, traction unit, edge yam crusher, hot stretching oven, splitter unit,stretching and fixing unit, winding machine, waste yarn recycling unit and electrical control cabinet.


    Fearture


    1. The electronic control unit adopts European brand industrial computer to monitor the whole machine operation, which makes the operation easier and improves the stability of machine operation. (optional)

    2. The cutting unit adopts a new adjustable structure, which effectively extends the service life of the blade.

    3. Update the original structure of lifting film and traction unit to meet the requirements of high-efficiency wire drawing.

    4. The main electrical components are international brand products with international joint guarantee.

    5. It is used in the production and processing of flat filament products of various specifications, such as polypropylene, high density polyethylene ordinary filament, chemical filament, folded filament, etc.


    Specification:


    ItemUW-DS70×33-450UW-SS70×33-450UW-SM90×33-1000
    Raw matrialPP,LLHDPEPP,LLHDPEPP,LLHDPE
    Screw Dia.Φ70mmΦ70mm×2Φ90mm
    L/D33:133:133:1
    Screw&barrel38CrMoIA38CrMoIA38CrMoIA
    Screw Rpm.25-100rpm25-100rpm25-100rpm
    Meter pumpOne setTwo setTwo set
    Nozzle plateOne setTwo settwoset
    Hole no.s96 Holes96Holes×296 Holes×2
    Drawing sectionOneoneone
    Fixing sectionOne or TwoOne or twoOne or two
    winders24spindles48spindles48 spindles
    Winder sizeAs client requirementAs client requirementAs client requirement
    Installing power300KW380KW380KW
    Overall size (L×W×H)42000×4500×3000mm43000×4500×3000mm43000×6500×3000mm
    Weight28T32T32T

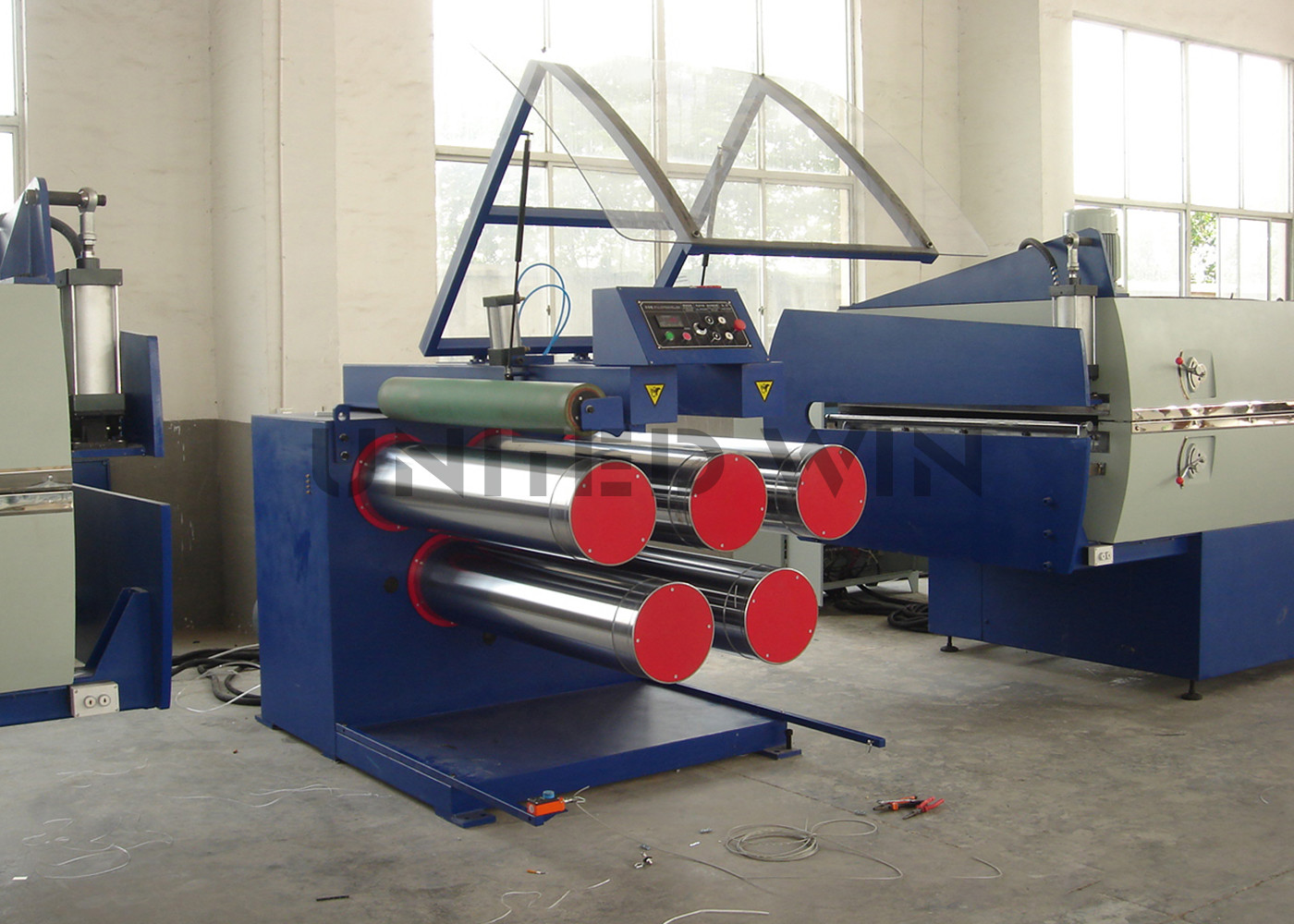

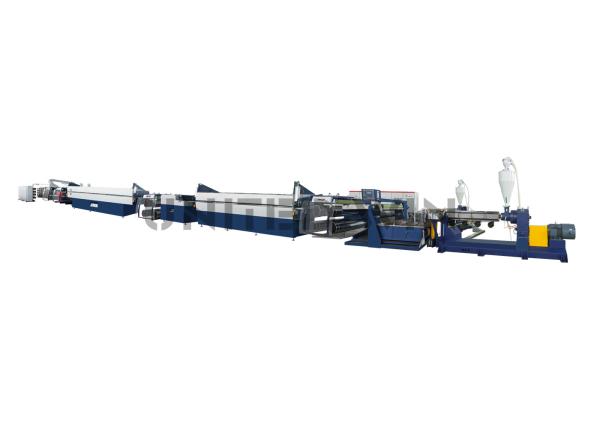

    Machine Picture:

    Woven Bag Tape Extruder Machine PP Tape Flat Yarn Extrusion LineWoven Bag Tape Extruder Machine PP Tape Flat Yarn Extrusion Line

    FAQ:


    1. How long will your engineer reach our factory?

    Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)


    2. How many days will you finish installing?

    We will finish installation and training within 15 days.


    3. What should we charge for your engineer?

    You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.


    4. How long is your machine's warranty period?

    All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.


    5. How could you do if the parts broken within warranty?

    We would express the free replacement parts during the warranty date


    6. How could you do after one year warranty period?

    We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.


    7. Does your engineer understand English?

    Our engineers understand a little English. All our engineers have more than five years machine installation experience.
