    UW-2250×8 China Manufacturer Eight Shuttles Circular Loom Machine for Woven Sacks

    Ask Lasest Price
    Brand Name : United Win
    Model Number : UW-2250×8
    Price : USD
    Payment Terms : T/T, L/C
    Supply Ability : 3sets/month
    Delivery Time : 3 month
    • Product Details
    • Company Profile

    UW-2250×8 China Manufacturer Eight Shuttles Circular Loom Machine for Woven Sacks

    UW-2250×8 China Manufacturer Eight Shuttles Circular Loom Machine for Woven Sacks


    Description:


    UW series circular lloom, which adopts the Single Chip Microcomputer, carry out centralized control to the system; the parameter is set up and changed on Human Machine Interface. Main motor and take-up motor are respectively driven by dual inverters. The system can change and update the data in time, reaching high accuracy and move ahead simultaneously. The function of accurate weft cloth compensate, can carrying on by weft density adjustment in time, improving fabric's quality and the qualification rate. Mechanical malfunction can be displayed in sub-area and recorded in detail. Users may conveniently process the production management and control the system in real time on the Human Machine Interface.


    Specifications:


    ItemUW-650×4UW-850X6HUW-1350×6UW-2200×6UW-2250×8
    Number of shuttles(pcs)46668
    Folding width of cloth(mm)150-650300-850900-13501500-22001750-2250
    Number of warp576 pcs720pcs1200pcs2880pcs2880pcs
    Weft density8-16(pcs/inch)
    Max. speed(r/min)160150-1801108070
    Power of main motor2.KW3kw5.5 KW7.5kw11kw
    Max.weft Bobbin diameterФ 100Ф 115Ф 90
    Overall dimension(L×W×H)8500×2500×290010500×2800×292010850×3000×350016480×3600×458016480×3600×4580
    Weight (about)2000kg2500kg4200kg8000kg9000kg

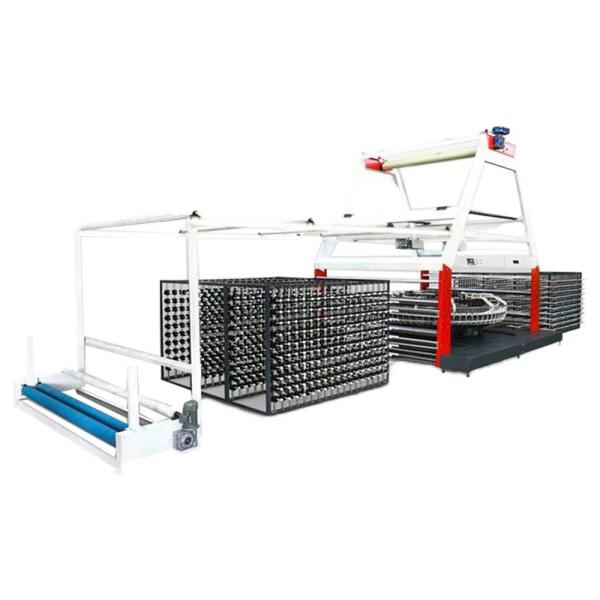

    Machine Picture:


    UW-2250×8 China Manufacturer Eight Shuttles Circular Loom Machine for Woven Sacks


    FAQ:

    1. How long will your engineer reach our factory?

    Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)


    2. How many days will you finish installing?

    We will finish installation and training within 15 days.


    3. What should we charge for your engineer?

    You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 150USD one day per person.


    4. How long is your machine's warranty period?

    All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.


    5. How could you do if the parts broken within warranty?

    We would express the free replacement parts during the warranty date


    6. How do we solve the machine problem after your engineer leaving?

    Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time.

    Our engineers will take a solution video according your description.
