    30kw 32rpm Single Cone Spiral Belt Dryer Full Closed Freeze Dry Vacuum Chamber

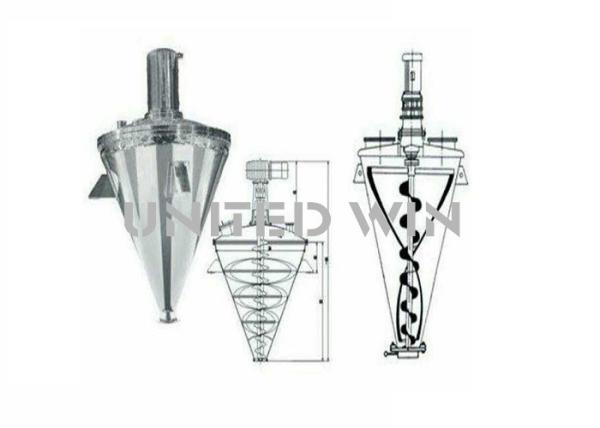

    ZXLG Series Single Cone Spiral Belt Dryer High Efficiency Multi function Full Closed


    Description:


    1. Strong applicability: combined with the company's special drying process, can adapt to the viscosity, poor thermal penetration, easy ball, easy to hold together into a block of dry materia

    2. Production capacity: large capacity, the largest container can reach the effective volume of 80%

    3. The high drying efficiency: effective heat transfer area. the container is 1. 4 times the area of the material in the container: a spiral ascending, and then along the main axis of vortex was decreased, in the decentralized movement in uniform and effective heating head; high vacuum and high speed airflow at the bottom of combined with the material, solvent, away; dual channel vacuum pipe vacuum, to prevent clogging, reduce
    resistance, increase the pumping rate

    4. It does not damage the material and product form: high requirements for heat sensitive products, shaped materials are not damaged. The drying process is fully sealed with nitrogen protection, no cross contamination, high cleanliness and high safety level. The gap between the mixer and the container wall is small, which can effectively prevent the material from sticking on the surface of the wall of the device

    5. It meets the production requirements of sterile APIs: optional SIP and CIP online cleaning and online aseptic sampling. Sealed with the upper and lower process, the entire production process sealed production, to meet the requirements of the new version of GMP production.



    Specifications:

    ModelZXLG500ZXLG750ZXLG1000ZXLG1250ZXLG1500ZXLG2000ZXLG3000ZXLG4000
    Effective volume(L)500750100012501500200030004000
    Heating area(m2)4.15.27.29.110.6131922
    Heating power(kw)5.57.57.5111518.52230
    Total weight13501850230026002900360041004450
    Speed of agitator5045403836363432
    Total hight35653720416543604590492051605520
    Height of container14551610196521602300259023803160
    Support lug height895995131514801630186019002240

    Application:


    30kw 32rpm Single Cone Spiral Belt Dryer Full Closed Freeze Dry Vacuum Chamber30kw 32rpm Single Cone Spiral Belt Dryer Full Closed Freeze Dry Vacuum Chamber
    Company Information:


    30kw 32rpm Single Cone Spiral Belt Dryer Full Closed Freeze Dry Vacuum Chamber
    FAQ:

    1. How long will your engineer reach our factory?
    Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)

    2. How many days will you finish installing?
    We will finish installation and training within 15 days.

    3. What should we charge for your engineer?
    You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.

    4. How long is your machine's warranty period?
    All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.


    5. Does your engineer understand English?
    Our engineers understand a little English. All our engineers have more than five years machine installation experience.

    6. Can you help us find any engineer in our location?
    Of course, we will check and inform you as soon as possible.


    7. How could you do after one year warranty period?
    We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.


    8. How could you do if the parts broken within warranty?
    We would express the free replacement parts during the warranty date
