Shuttle Assembly Circular Loom Spare Parts SBY-8506S

    Buy cheap Shuttle Assembly Circular Loom Spare Parts SBY-8506S from wholesalers

    Buy cheap Shuttle Assembly Circular Loom Spare Parts SBY-8506S from wholesalers
    • Buy cheap Shuttle Assembly Circular Loom Spare Parts SBY-8506S from wholesalers

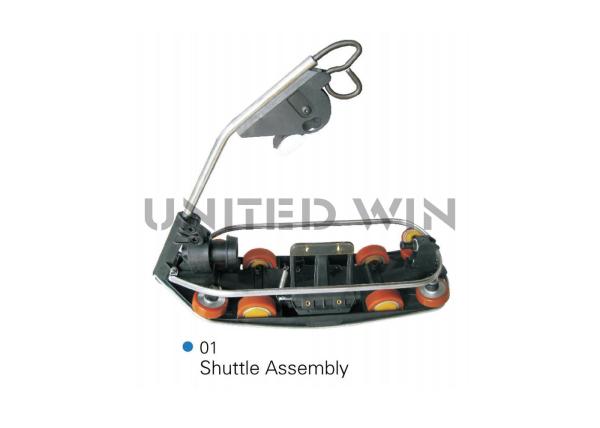

    Shuttle Assembly Circular Loom Spare Parts SBY-8506S

    Ask Lasest Price
    Brand Name : unitedwin
    Price : USD
    Supply Ability : 30000pcs/month
    Delivery Time : 7days
    MOQ : 1 Pcs
    • Product Details
    • Company Profile

    Shuttle Assembly Circular Loom Spare Parts SBY-8506S

    Circular Loom Spare Shuttle Assembly SBY-8506S


    Introduce of Circular loom:


    1. SCM control and dual-inverter drive. The data are transmitted at a high speed, high precision control, as well as the strong ability of anti-interference. By adopting the Human Machine Interface, the modification and settlement of the parameters can all be run on the HMI, which simplified the operation process and improved the precision of controlling.


    2. equipped with electrical control system to drive cloth take-up device instead of mechanical system. It not only greatly reduced the amount of mechanical transmission devices, but also lowered the maintaining costs and consumptions of spare parts. The high-accuracy linear synchronism between cloth take-up and host machine, enables the control system more powerful.


    3. Update weft-end and weft-break detection methods, by mirroring Germany advanced technology. The new technology can prevent the machine from false operation and improve the precision of weft tape detection. Meanwhile, the new technology has overcame the difficulty of detecting the weft tape due to low rotary speed, and has removed the trouble of asynchronism between rotational speed shift of the host machine and that of take-up motor.


    4. Guarantee cloth cover yarn distribute even and uniform. Only slight revise is needed when there is disaccord of width. It is an intelligent controlling system, for it’s more accurately parameter settings and easy - operated.


    5. The Human-machine interface monitors and controls many important data in real time. The automation statistical data accurately displays on the LED screen. It is free from interruption by human factors, facilitating the production management. It could reduce the labor force in a great amount, especially to the volume-produce workshops, and gain more profits consequently.


    Specification:


    No.NameModel
    1Shuttle Assembly6SA-05-01HF
    2Shuttle Body6SA-05-01
    3Shuttle Arm Assembly6SA-05-03HF
    4Compensator6SA-05-13Z-04Z
    5Shell6SA-057-7
    6Shuttle Head6SA-18Z-01.02
    7Upper Shuttle WheelGSA-05-03Z-01
    8Rolling Wheel (Bottom)6SA-05-022-01
    9Shuttle Wheel6SA-05-042-01
    10Back Lower shuttle Wheel6SA-05-18Z-01-02
    11Front Bobbin Stand6SA-05-06Z
    12Back Bobbin Shaft Stand6SA-05-20z
    13Front Bobbin sleeve6SA-05Z-08/08a
    14Front bobbin sleeve6SA-05-08/08a
    15Back Bobbin Sleeve6SA-05-20z
    16Brake Jaw6SA-05-172-012
    17Supporter6SA-05-17Z-02
    18Tension Adj board6SA-05Z-15
    19Supporter6SA-05-172-02
    20Holding Board6SA05-172-01Z
    21Steel Brush6SA-05-17Z-03
    22Bobbin Shaft Spring6SA-05Z-05
    23Resist Spring6sA-05-23
    24Tension Spring6SA-05-13Z-02
    25Dowel Pin 2x8mm6SA-05-25-HF
    26Dowel Pin 2x14mm6SA-05-26-HF
    27Big Guide Frame6SA-05-22
    28Small Guide Frame6SA-05-142

    Company Introduce:


    Our company is a professional manufacturer and exporter with design, development and production of pp woven machines, non-woven machines, monofilament production line adhesive tape machine, multifilament extrusion intertwisting machine, circular looms and spare parts etc.

    We are located in Changzhou ,Jiangsu prov.

    All of our products comply with international quality standards,with set up local service branch office, customer praise rate reached 100%. more than 70% on market.


    Equipped facilities and excellent quality control throughout all stages of production enables us to guarantee customer satisfaction.

    Our sales network covers more than 60 countries and regions around the world.Our team is looking forward to building a successful relationship with the elites.


    Application:

    Shuttle Assembly Circular Loom Spare Parts SBY-8506S

    Shuttle Assembly Circular Loom Spare Parts SBY-8506S

    FAQ:


    1: Are you trading company or manufacturer ?
    A: We are factory.


    2: How long is your delivery time?
    Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
    quantity.


    3: Do you provide samples ? is it free or extra ?
    Yes, we could offer the sample for free charge but do not pay the cost of freight.


    4: What is your terms of payment ?
    30% T/T in advance ,balance before shipment.
